Monitoring

graph TD
  subgraph Data Sources
    DS1([Firewall])
    DS2([Synology])
    DS3([Kubernetes])
    DS4([Core switches])
    DS5([Unifi])
    DS6([smartmeter])
  end

  subgraph Collect and Process
    CP1([Grafana Alloy])
    CP2([telegraf])
    CP3([Unifi Poller])
    CP4([pfsense internal])
    CP5([mqtt])
    CP6([nodered])
  end

  subgraph Storage
    STG1[Loki]
    STG2[(mysql)]
    STG3[(postgres)]
    STG4[(InfluxDB)]

  end

  subgraph Alerting
    ALERT1([Alert Manager])
    ALERT2([pushover])
  end

  subgraph Visualization
    VIS1([Grafana])
  end

  DS1 sys1@-- syslog --> CP1
  DS1 alert1@==> ALERT2

  DS2 snmp1@-- snmp --> CP2
  DS3 snmp2@-- snmp --> CP2
  DS4 snmp3@-- snmp --> CP2
  DS5 unifi1@--> CP3
  DS6 mqtt1@--> CP5

  CP1 e2@--> STG1
  CP2 --> STG4
  CP3 --> STG4
  CP4 --> STG4
  CP5 --> CP6
  CP6 --> STG4

  STG1 --- VIS1
  STG2 --- VIS1
  STG3 --- VIS1
  STG4 --- VIS1

  VIS1 --> ALERT1
  VIS1 --> ALERT2

sys1@{ animate: true }
alert1@{ animate: true }
snmp1@{ animate: true }
snmp2@{ animate: true }
snmp3@{ animate: true }
unifi1@{ animate: true }

click DS1 "#firewall"
click DS2 "#synology"
click DS3 "#kubernetes"
click DS4 "#core-switches"
click DS5 "#unifi"
click CP1 "#grafana-alloy"
click CP2 "#telegraf"
click CP3 "#unifi-poller"
click STG1 "#loki"
click STG2 "#mysql"
click STG3 "#postgres"
click STG4 "#influxdb"
click ALERT1 "#alert-manager"
click ALERT2 "#pushover"
click VIS1 "#grafana"

Data Sources

Data sources zijn alle verschillende componenten die gemonitored moeten worden.

Firewall

Het hart van het netwerk, de firewall zorgt voor een veilig netwerk, ik monitor alle firewall regels en de systeemstatus. Firewall regels worden op dit moment gelogd door middel van Syslog en door een directe config naar influxDB.

Pfsense heeft een interne telegraf plugin die direct naar influxDB schrijft:

pfsense-internal
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
[[outputs.influxdb_v2]]
  urls = ["https://influxdb.loevencloud.nl"]
  token = "<influxdbtoken>"
  organization = "loevencloud"
  bucket = "pfsense"

[[inputs.exec]]
    commands = [
        "/usr/local/bin/telegraf_pfifgw.php",
        "sh /usr/local/bin/telegraf_temperature.sh"
    ]
    data_format = "influx"

[[inputs.tail]]
    files = ["/var/log/pfblockerng/dnsbl.log"]
    data_format = "grok"
    from_beginning = false
    name_suffix = "_dnsbl_log"
    grok_timezone = "Local"
    grok_patterns = ["^%{WORD:blocktype}-%{WORD:blocksubtype},%{SYSLOGTIMESTAMP:timestamp:ts-syslog},%{IPORHOST:domain},%{IPORHOST:src_ip:tag},%{GREEDYDATA:req_agent},%{WORD:blockmethod},%{WORD:blocklist:tag},%{IPORHOST:tld:tag},%{WORD:feed_name:tag},%{GREEDYDATA:duplicateeventstatus}"]

[[inputs.tail]]
    files = ["/var/log/pfblockerng/ip_block.log"]
    data_format = "grok"
    from_beginning = false
    name_suffix = "_ip_block_log"
    grok_timezone = "Local"
    grok_patterns = ["^%{SYSLOGTIMESTAMP:timestamp:ts-syslog},%{NUMBER:rulenum},%{DATA:interface},%{WORD:friendlyname},%{WORD:action},%{NUMBER:ip_version},%{NUMBER:protocolid},%{DATA:protocol:tag},%{IPORHOST:src_ip:tag},%{IPORHOST:dest_ip:tag},%{WORD:src_port:tag},%{NUMBER:dest_port:tag},%{WORD:direction},%{WORD:geoip_code:tag},%{DATA:ip_alias_name},%{DATA:ip_evaluated},%{DATA:feed_name:tag},%{HOSTNAME:resolvedhostname},%{GREEDYDATA:clienthostname},%{GREEDYDATA:ASN},%{GREEDYDATA:duplicateeventstatus}"]

Alle pfsense systeem logs worden naar Alloy verzonden waar ze verwerkt worden tot bruikbare logentries en opgeslagen in Loki. In grafana is een [pfsense dashboard](https:// welke alle data samenbrengt.

graph TD
    FW1[firewall]
    FW2[internal processing]
    PC1([Alloy])
    PC2([Telegraf])
    DS1[(InfluxDB)]
    DS2[(Loki)]
    VS1([Grafana])

    FW1 --> FW2
    FW1 --> PC1
    FW1 --> PC2
    FW2 --> DS1
    PC1 --> DS2
    PC2 --> DS1
    DS1 --- VS1
    DS2 --- VS1

Synology

De synology apparatuur wordt gemonitored door middel van een snmp scraper in telegraf, deze stuurt alle informatie door naar influxDB, in grafana is een Synology dashboard welke alle data samenbrengt.

graph LR
    SY1[Synology]
    PC1([Telegraf])
    DS1[(InfluxDB)]
    VS1([Grafana])

    SY1 --> PC1
    PC1 --> DS1
    DS1 --> VS1

Kubernetes

Het kubernetes cluster en alle nodes worden gemonitored door middel van een telegraf scraper Kubernetes inventory deze verzamelt alle relevante data en stuurt dit naar influxDB in grafana is een Kubernetes dashboard welke de juiste inzichten geeft.

graph LR
    SY1[Kubernetes]
    PC1([Telegraf])
    DS1[(InfluxDB)]
    VS1([Grafana])

    SY1 --> PC1
    PC1 --> DS1
    DS1 --> VS1

Core switches

De netwerk apparatuur wordt gemonitored door middel van een snmp scraper in telegraf, deze stuurt alle informatie door naar influxDB, in grafana is een network dashboard welke alle data samenbrengt.

graph LR
    SY1[C-MK-01]
    SY2[C-ZK-01]
    PC1([Telegraf])
    DS1[(InfluxDB)]
    VS1([Grafana])

    SY1 --> PC1
    SY2 --> PC1
    PC1 --> DS1
    DS1 --> VS1

    click SY1 "../Networking/c-mk-01.md"
    click SY2 "../Networking/c-zk-01.md"

Unifi

De netwerk apparatuur wordt gemonitored door middel van een poller container, deze stuurt alle informatie door naar influxDB, in grafana zijn meerdere unifi dashboards beschikbaar die alle data samenbrengt.

graph LR
    SY1[Unifi]
    PC1([unifi poller])
    DS1[(InfluxDB)]
    VS1([Grafana])

    SY1 --> PC1
    PC1 --> DS1
    DS1 --> VS1

    click SY1 "../Networking/unifi.md"

SmartMeter

De smartmeter wordt uitgelezen door middel van een Raspberry Pi documentatie is hier te vinden.

graph LR
    SY1[Smartmeter]
    PC1([mqtt])
    PC2([nodered])
    DS1[(InfluxDB)]
    VS1([Grafana])

    SY1 --> PC1
    PC1 --> PC2
    PC2 --> DS1
    DS1 --> VS1

    click SY1 "../Networking/unifi.md"

nodered polt de mqtt omgeving voor nieuwe berichten en plaatst deze in de influxDB database.

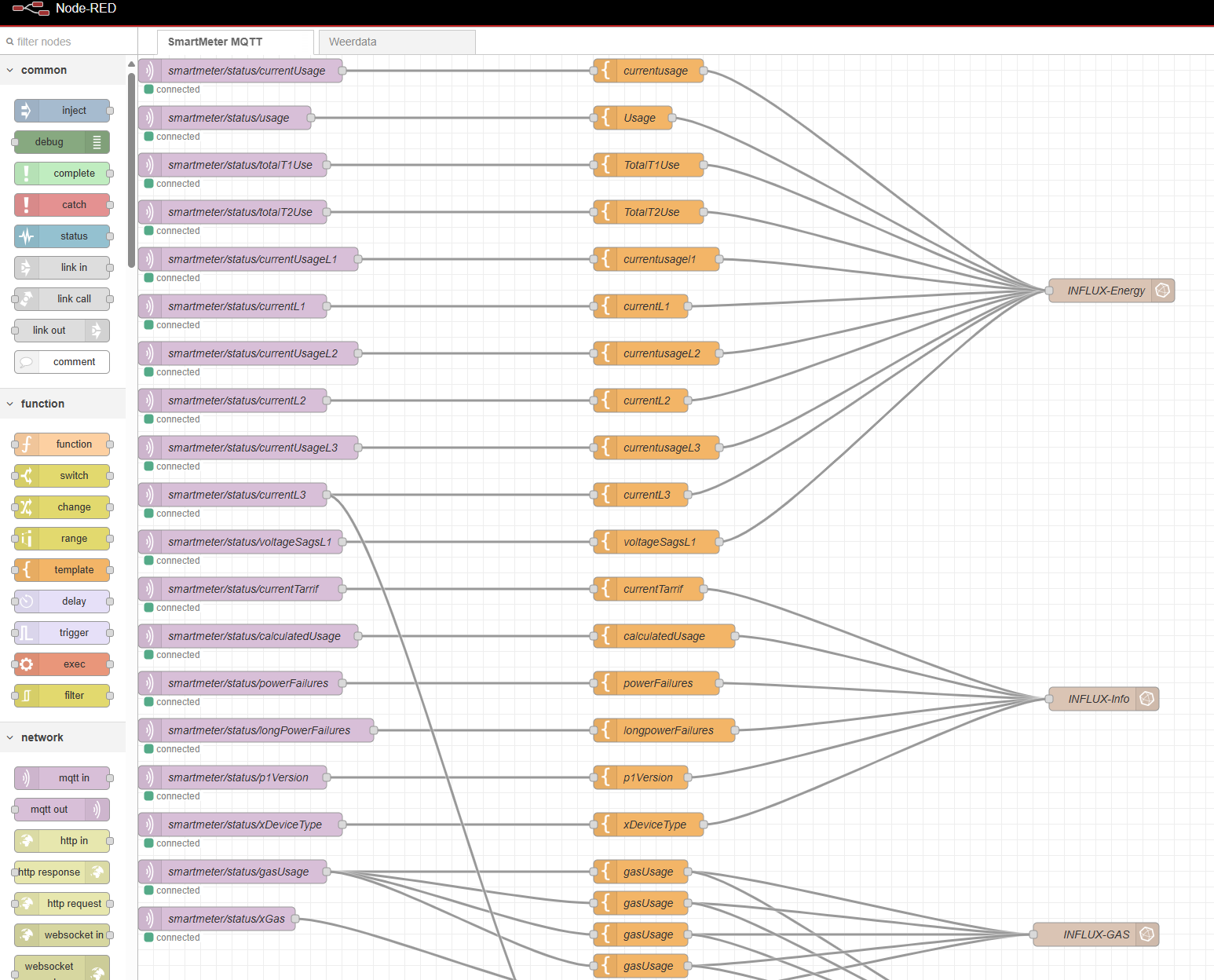

mqtt flow

Collect and process

Log data moet verzameld en opgeschoond worden voordat deze opgeslagen kan worden, hiervoor zijn een aantal collectors en processors aangemaakt.

Unifi Poller

Een specifieke collector voor unifi controllers, deze kan data naar verschillende storage sturen. Informatie en configuratie : unifi poller

Telegraf

Telegraf is een scraper gemaakt door influxdata, een algemene beschrijving en documentatie is hier te vinden. De volgende outputs zijn actief, deze verwijzen allemaal naar dezelfde influxdb instantie en er wordt gefiltert op een naam om de juiste bucket toe te wijzen.

telegraf.conf
